Understanding Scaling and Backpressure in Reverse Osmosis Systems

Reverse osmosis (RO) systems are integral to modern water treatment, but they can encounter issues like scaling and backpressure. Differentiating these can enhance system performance and reliability.

Scaling in RO Systems

Scaling manifests as a common operational issue in RO systems. It occurs when minerals accumulate on the membrane surfaces, leading to the following symptoms:

• Initial Stage: Rapid decrease in water production, increased operation pressure, and fast rise in conductivity of the second-stage permeate.
• Severe Scaling: Further increase in differential pressure and even higher conductivity levels, potentially exceeding ten times that of the first-stage permeate.

Scaling is frequently mistaken for other faults like backpressure due to similar symptoms. Recognizing these differences is crucial for accurate diagnosis and effective intervention.

Backpressure Phenomena

Backpressure often results from operational errors during chemical cleaning processes, such as slow valve movements. It typically occurs in the second stage and can be confused with scaling. If both occur simultaneously, detection and diagnosis become complicated.

Example Analysis of Simultaneous Scaling and Backpressure

A case study revealed that initial diagnoses pointed to scaling due to testing results. However, further membrane analysis uncovered the presence of both scaling and backpressure. Here’s a brief overview:

1. Conductivity Spike Detection: Single membrane segment showed unusual conductivity increase, suggesting scaling.
2. End Cap Inspection: Visible scaling was evident upon disassembling, indicating potential silica scaling.

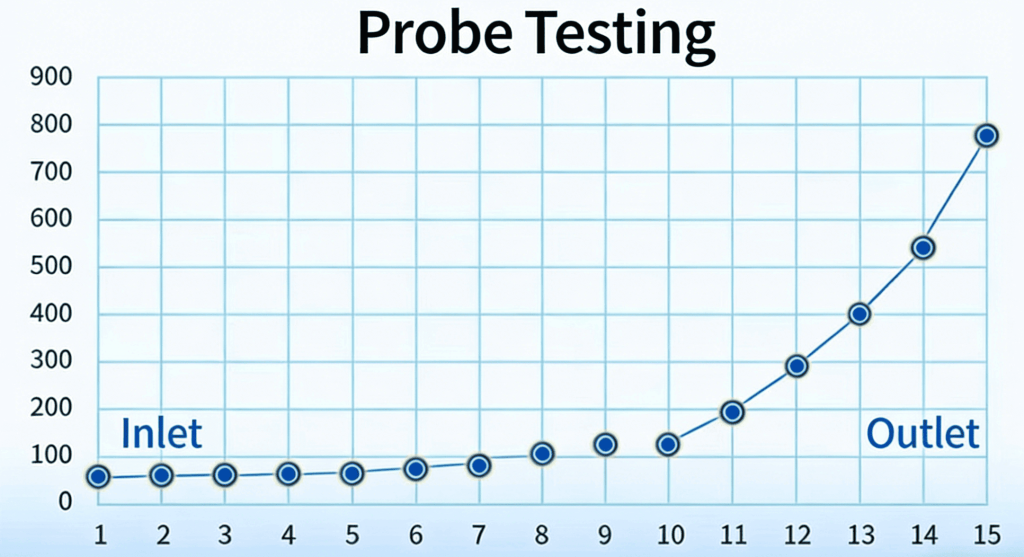

3. Probe Testing: Conductivity peaked on the concentrate side, aligning with backpressure symptoms.
4. Contaminants: 85% organic pollution, with aluminum and silica as primary inorganics.
5. Membrane Integrity: Visible leaks and severe bubbling on the concentrate side, confirming backpressure presence.

Comparative Analysis

Here are distinct characteristics distinguishing backpressure from scaling:

• Pressure Changes: Scaling causes delayed pressure differential increases, while backpressure shows stability.
• Conductivity Variations: Both affect conductivity, but scaling causes more pronounced changes.
• Water Production: Scaling sharply reduces output, contrasting with backpressure’s stable performance.

Conclusions

Through thorough membrane analysis, the dual presence of scaling and backpressure was uncovered. Understanding these underlying causes helps address performance declines in RO systems more effectively.
