Tiered Strategies for Water Hardness Removal

A Selection Guide from Ion Exchange to Chemical Softening

Engineer Hu’s Insight: In the lifecycle of industrial water supply, municipal systems, and wastewater reuse, controlling water hardness is a core challenge for maintaining stable operation and reducing energy loss. Hardness ions, primarily Calcium (Ca2+) and Magnesium (Mg2+), exhibit complex thermodynamic behavior. As temperatures rise or pH fluctuates, these ions easily cross the solubility product (Ksp) threshold, forming dense scale layers on heat exchangers, boiler pipes, and Reverse Osmosis (RO) membranes.

1. The Chemical Essence and Engineering Standards of Hardness

In water treatment engineering, “total hardness” refers to the sum of the molar concentrations of calcium and magnesium ions, typically expressed as a mass concentration of calcium carbonate (CaCO3) in mg/L.

• Carbonate Hardness (Temporary): Primarily combined with bicarbonate (HCO3-), it undergoes decarboxylation during heating:

[Equation: Ca(HCO3)2 + Heat -> CaCO3 + CO2 + H2O]

• Non-Carbonate Hardness (Permanent): Associated with sulfates (SO4 2-) and chlorides (Cl-), requiring membrane concentration or extreme chemical environments to trigger scaling.

Hardness Limits Across Industries

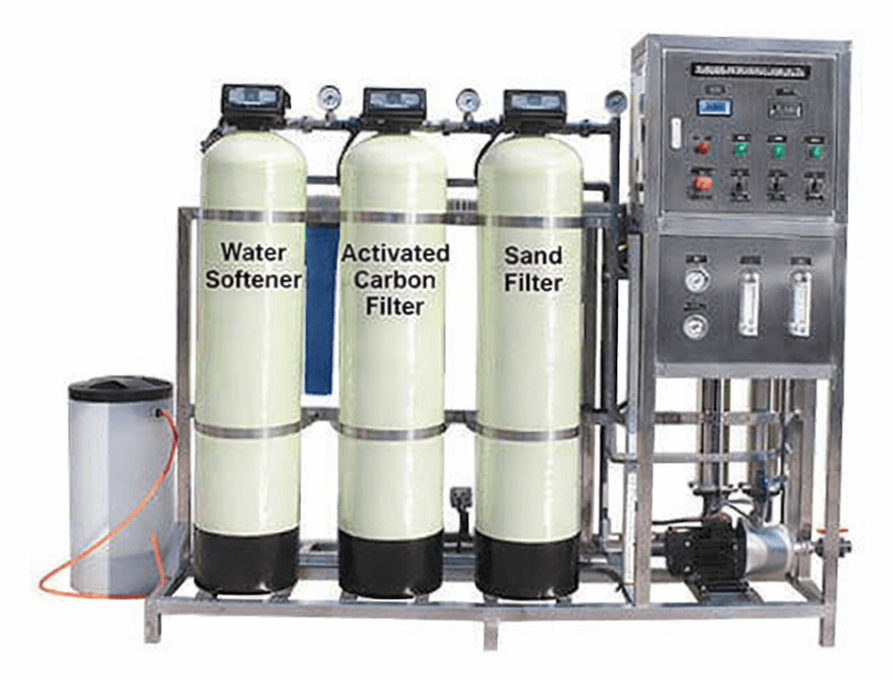

2. Tier 1: Low Hardness (< 150 mg/L) – Automatic Sodium Ion Exchangers

When influent total hardness is below 150 mg/L, sodium ion exchangers (softeners) are recognized as the most cost-effective engineering solution.

Mechanism and Optimization

The core mechanism involves strong acid cation resins exchanging multivalent hardness ions for monovalent sodium ions:

[2R-Na + Ca2+ <=> R2-Ca + 2Na+]

• Regeneration Frequency: Optimal cycles are suggested to be every 5-7 days.
• Salt Efficiency: Research shows that dosing 6 lbs of salt per cubic foot of resin yields about 20,000 grains of capacity, whereas 15 lbs only increases it to 30,000 grains, indicating diminishing returns.
• Automation: Modern “Demand-initiated Regeneration” systems can save 20%-30% in salt consumption compared to fixed-time regeneration.

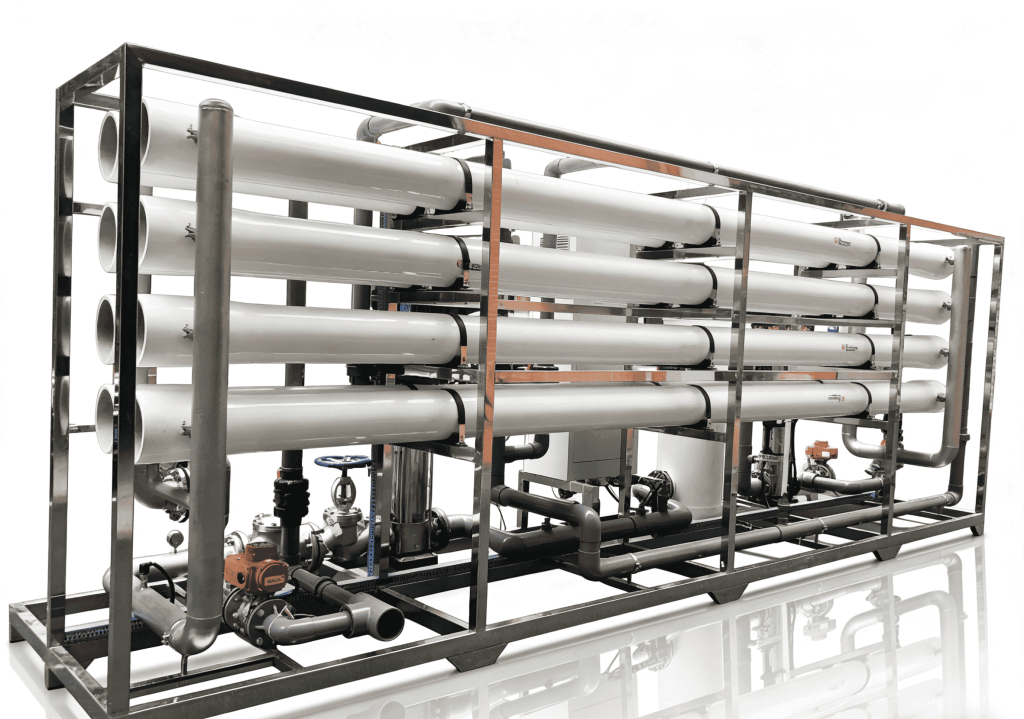

3. Tier 2: Medium Hardness (150 – 500 mg/L) – Reverse Osmosis (RO) and Antiscalant Strategies

For medium hardness water with high TDS, Reverse Osmosis (RO) systems serve as a dual-purpose tool for both desalination and softening, boasting a 98% multivalent ion rejection rate.

Antiscalant and LSI Control

At a 75% recovery rate, hardness ions in the brine side are four times the concentration of the feed water. To prevent scaling, chemical antiscalants use:

• Threshold Inhibition: Occupying active growth sites on crystal nuclei.
• Crystal Modification: Disrupting the lattice structure to keep scale loose and flushable.
• Langelier Saturation Index (LSI): The gold standard for assessing CaCO3 potential.

[LSI = pH – pHs]

While traditional designs keep LSI negative, modern antiscalants allow the brine LSI to reach +1.8 or even +2.5.

4. Tier 3: High Hardness (> 500 mg/L) – Chemical Softening as Membrane Protection

When hardness exceeds 500 mg/L (e.g., desulfurization wastewater), direct entry into a membrane system is disastrous. Chemical softening forces dissolved ions to precipitate.

• Lime-Soda Ash Method: Lime [Ca(OH)2] removes carbonate hardness and magnesium, while soda ash [Na2CO3] converts non-carbonate hardness.
• Sodium Hydroxide (NaOH) Method: Better for smaller systems requiring high automation. The reaction is:[Ca(HCO3)2 + 2NaOH -> CaCO3 + Na2CO3 + 2H2O]
• Warm/Hot Softening: Raising temperatures (49-60°C) significantly reduces residual calcium, magnesium, and silica concentrations.

5. Why “High Hardness Directly to RO” Fails

In the “concentration polarization layer” on the RO membrane surface, local concentrations can be several times higher than the bulk liquid.

• Gypsum (CaSO4) Scaling: Once crystals form, their mechanical strength is extremely high and they are nearly impossible to dissolve with standard acid cleaning.
• Environmental Burden: Using softeners for water with >500 mg/L hardness leads to excessive salt waste, frequent regeneration, and high-salinity wastewater discharge.

6. Roadmap: Selection Guide for Operation Managers

OPEX Comparison

7. FAQ: Insights from Engineer Hu

• Q: What is the difference between softened water and RO water?
  A: Softened water replaces calcium/magnesium with sodium; the TDS remains the same. RO water removes over 98% of all dissolved solids, including sodium and sulfates.
• Q: Why did my RO membrane scale with silica despite using antiscalants?
  A: Most antiscalants are effective against CaCO3 but have limited efficacy against silica (SiO2). If silica exceeds 20 mg/L, consider alkaline softening.
• Q: How do I know if my resin needs replacement?
  A: Measure the “Working Exchange Capacity.” If product water hardness breaks through quickly despite proper salt dosing, the resin may be chemically or physically degraded.

Conclusion

The tiered evolution of hardness removal reflects a shift toward resource recovery and low-carbon operation. As engineers, we must rely on chemical precipitation for ultra-high hardness, membrane rejection for medium hardness, and ion exchange for terminal control.
