On-Site Commissioning of 100m3/d Groundwater Purification System in Johor, Malaysia

September 11, 2026
Wang Dali

Project Overview & Raw Water Chemistry

Globaluf’s engineering team recently completed the live commissioning and formal handover of a custom industrial groundwater purification plant in Johor, Malaysia. Extracted from a 270m deep borehole, the raw water carries heavy concentrations of mud, silt, and sand, resulting in persistent turbidity levels consistently exceeding 50NTU.

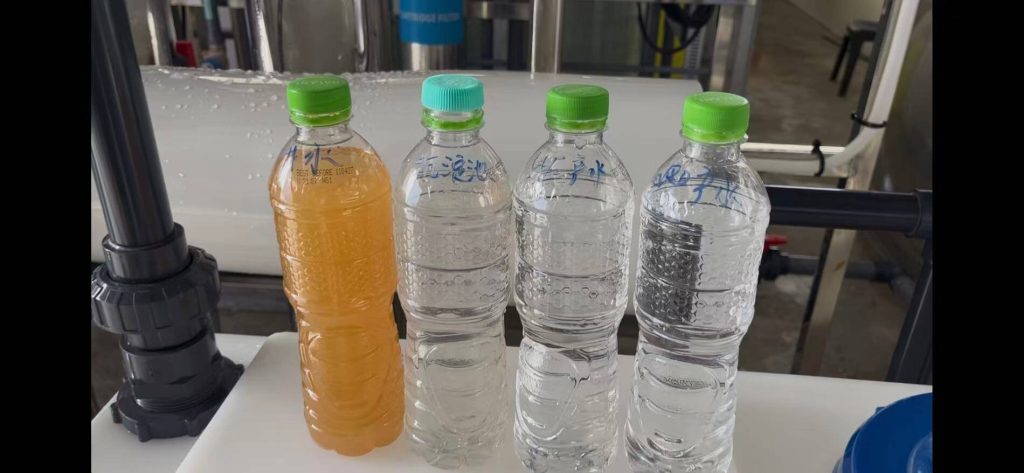

Water Samples Comparison Showing Raw Well Water Coagulation Sedimentation Ultrafiltration and RO Permeate

Live sampling comparison showing Raw Well Water (far left, Clarified Water, UF Permeate, and Final RO Drinking Water  far right).

Step-by-Step Chemical Dosing & Process Logic

To prevent rapid membrane fouling and ensure continuous operation, Globaluf implemented a 3-stage pre-treatment and filtration chain:

Borehole Water → Coagulation (PAC + NaOH + NaClO) → Flocculation (PAM) → Lamella Clarifier → Buffer Tank → Sand Filter → Activated Carbon Filter → Cartridge Filter → UF → RO → Product Water

Stage 1: Chemical Coagulation & Lamella Clarification

  • Primary Dosing Tank (Coagulation): A fast mixer at 64 rpm blends Polyaluminum Chloride (PAC, 30–50 mg/L) to bind colloidal particles. Sodium Hydroxide (NaOH) is added to optimize pH for maximum flocculation efficiency, alongside Sodium Hypochlorite (NaClO) for microbial disinfection.
  • Secondary Dosing Tank (Flocculation): A slow mixer at 32 rpm blends Polyacrylamide (PAM, 1–2 mg/L) to expand floc size.
  • Inclined Plate Settler (Lamella Clarifier): Water flows through a honeycomb lamella media basin where heavy flocs settle out rapidly (sludge is discharged every 8–12 hours), dropping raw turbidity from > 50NTU to under 1.0NTU.

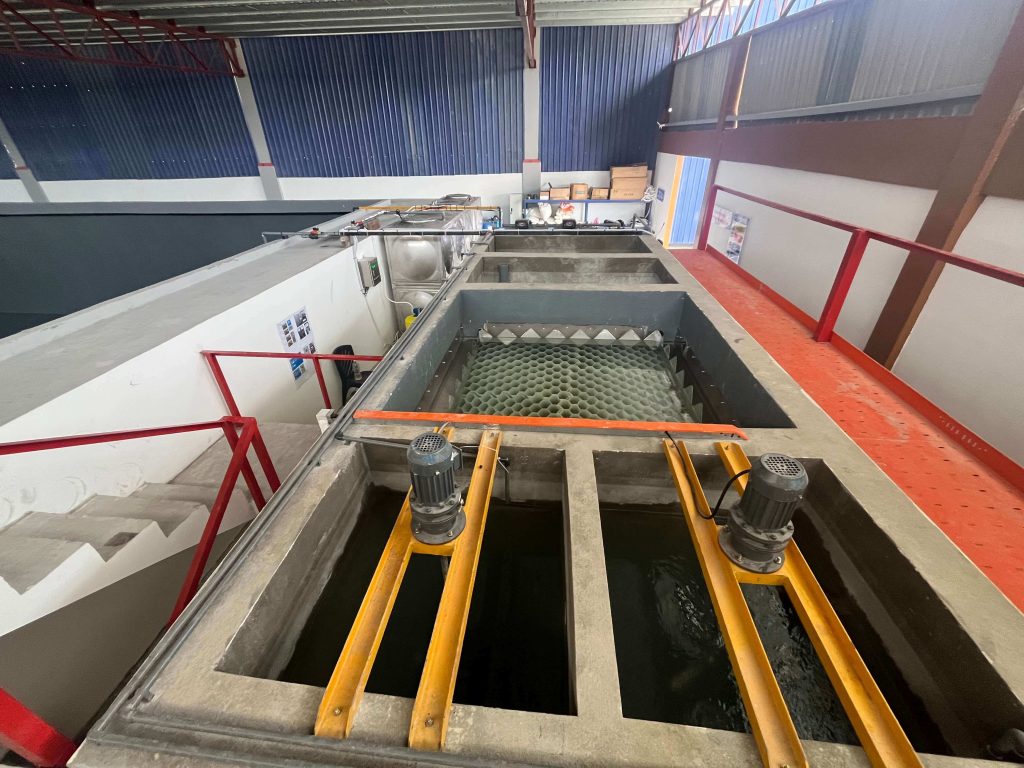

Industrial Coagulation Sedimentation Clarifier Basin with Lamella Plates and Mixers

Top-down view of the concrete lamella clarifier basin with mechanical agitators.

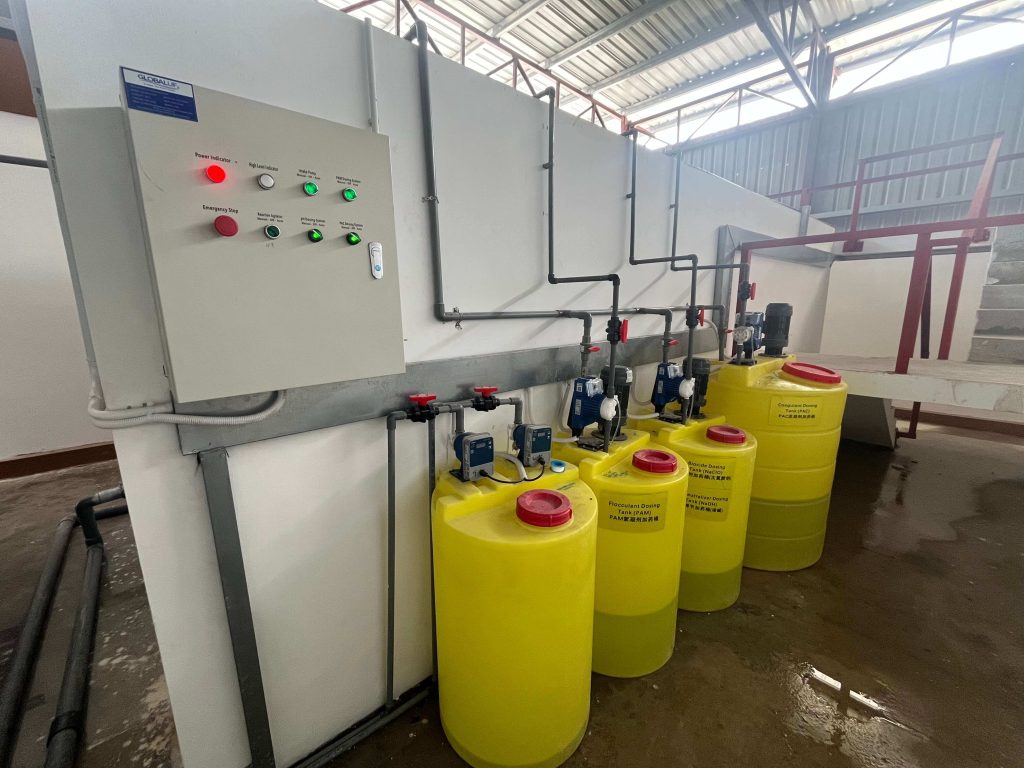

Automated Chemical Dosing Station with Buckets and Metering Pumps

Automated chemical dosing station with  PE tanks and metering pumps.

Stage 2: Ultrafiltration (UF) Membrane Barrier

Clarified water is stored in a 6m3 buffer tank, then passes through a sand filter, an activated carbon filter and a cartridge filter on the UF skid before entering the hollow-fiber UF modules. The 0.01um pore size blocks residual suspended solids, colloidal silica, and bacteria, maintaining a Silt Density Index (SDI below 3.0).

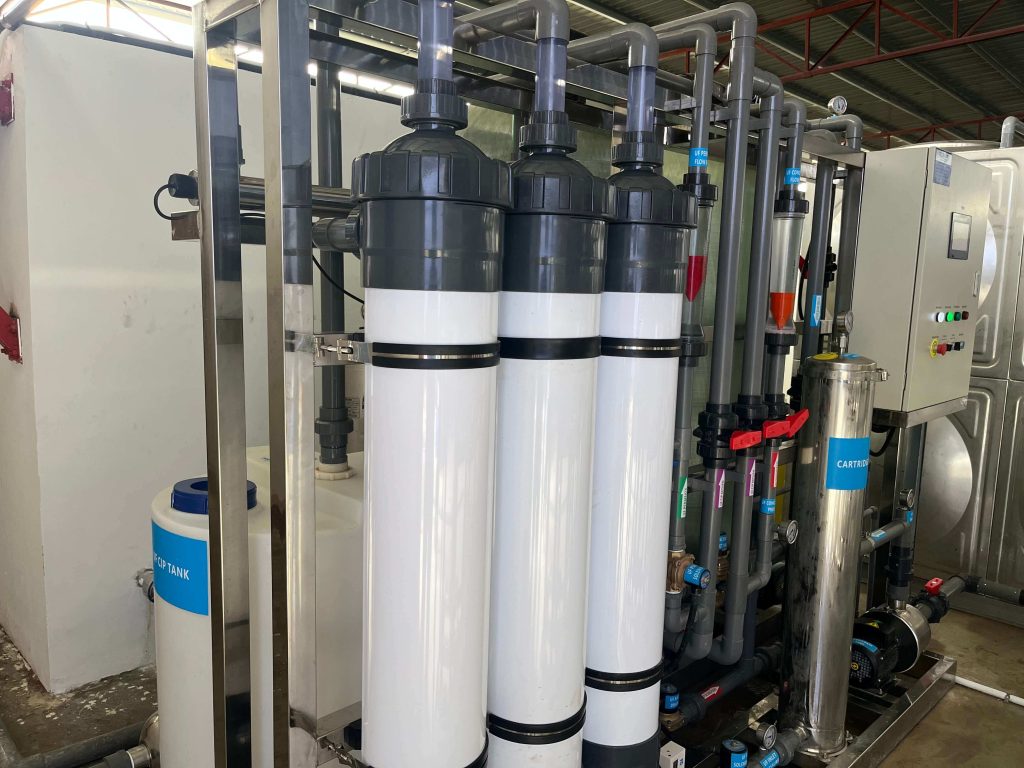

Hollow Fiber Ultrafiltration UF Membrane Module Skid with UPVC Piping and Cartridge Filter

Globaluf hollow-fiber UF membrane skid featuring UPVC piping and SS304 cartridge filter.

Stage 3: Reverse Osmosis (RO) Desalination

The UF permeate feeds into the RO skid where high-pressure pumps force water through semi-permeable membranes. Operating live at an inlet conductivity of 652uS/cm (pH =8.0), the system achieved a 7.29uS/cm permeate conductivity (98.9% desalination rate) with a neutral pH of 7.0.

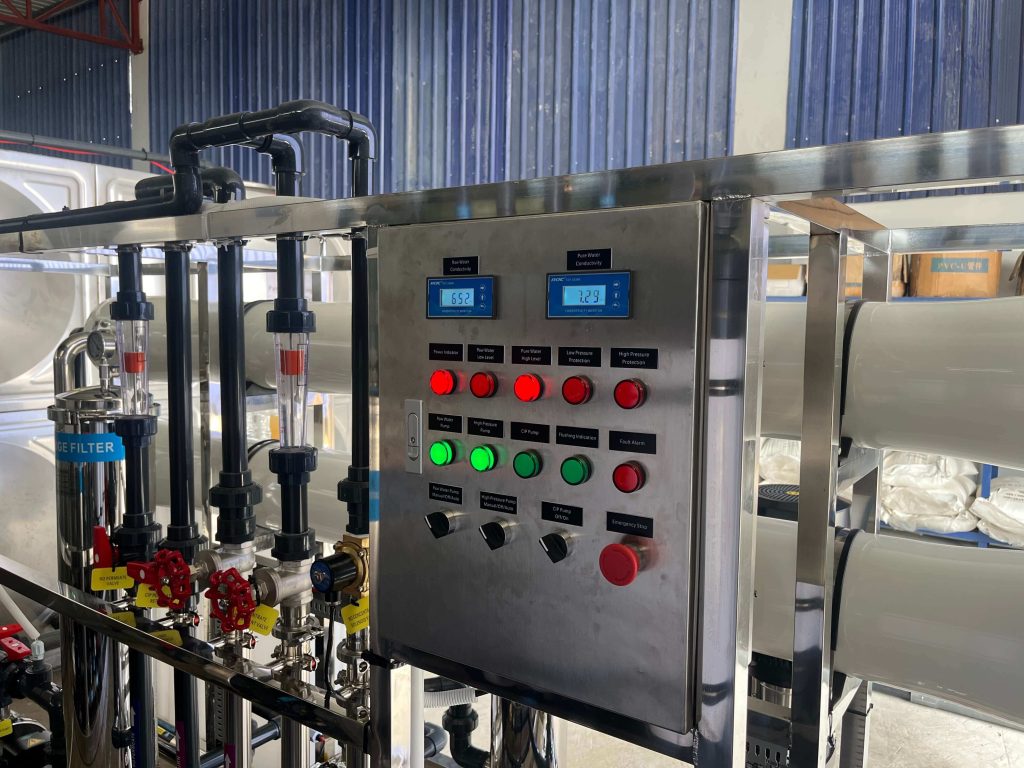

Industrial 4m3/h Reverse Osmosis RO System Control Panel with Conductivity Meters in Malaysia

Real-time RO control panel showing feed conductivity and  pure water output.

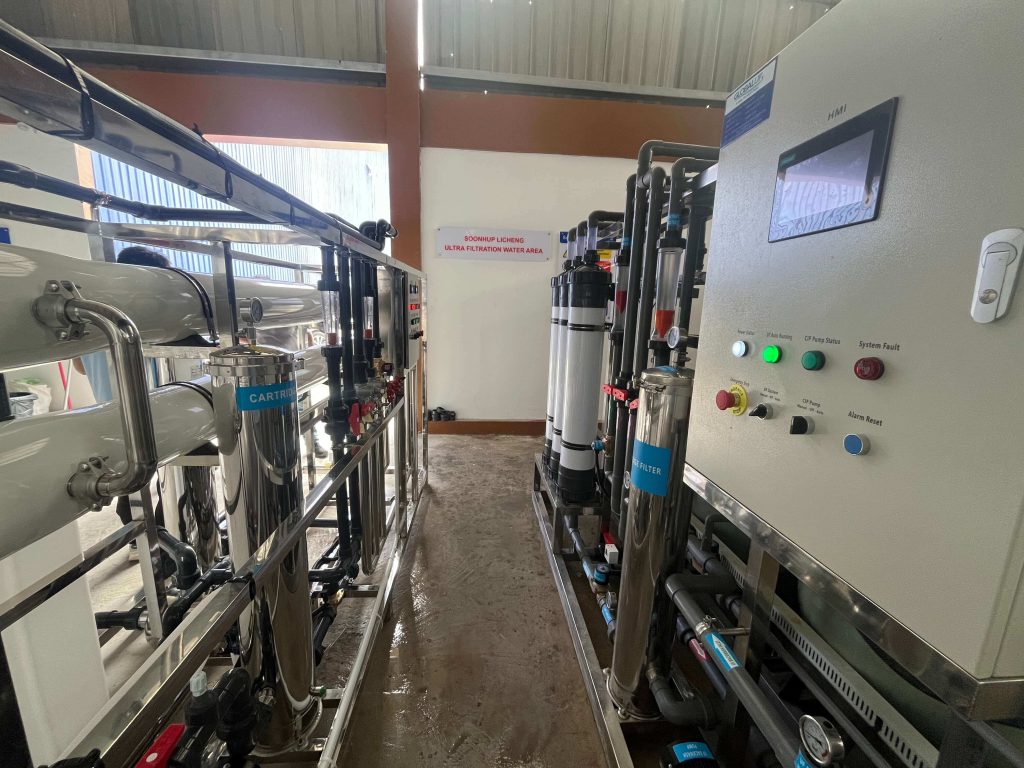

Complete Groundwater Purification Plant Walkway Overview showing UF and RO Skids in Malaysia

Complete walkway view showing parallel alignment of UF and RO skids.

Handover & Client Video Walkthrough

Following performance optimization and backwash cycle verification, Sales Manager Victor and Globaluf field engineers completed formal client training. The client’s management team expressed complete satisfaction with the system’s ease of operation and water purity.

For the full project data, see the case study: 100 m³/day Groundwater UF and RO Plant for a Worker Hostel in Johor.

This project was also covered by H2O Global News: GlobalUF commissions 100 m³/d UF and RO plant for borehole water in Johor, Malaysia (November 2, 2026).

Complete Groundwater RO System Handover & Client Testimonial in Malaysia
