Containerized Seawater Reverse Osmosis(SWRO) Systems

In a world where coastlines are abundant but freshwater is not, securing a reliable water source is a paramount challenge for coastal communities, island resorts, and remote industries. Traditional water sources are often stressed, unreliable, or non-existent.

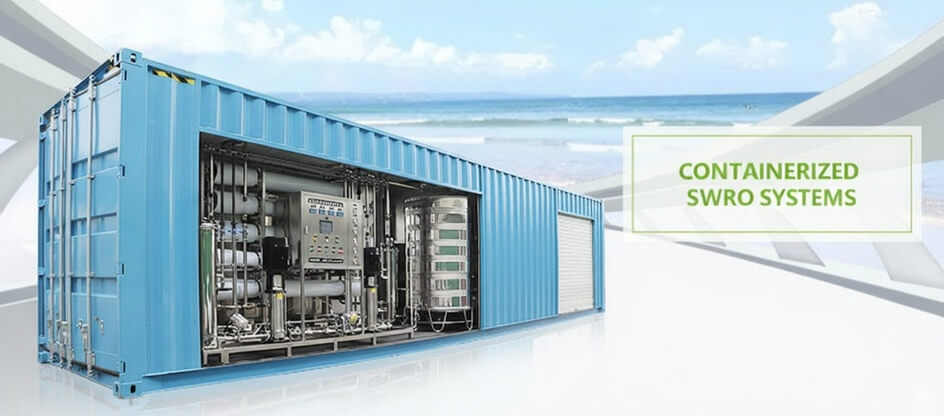

Globaluf provides the definitive answer: a state-of-the-art Containerized Seawater Reverse Osmosis (SWRO) System. We have engineered a complete, high-pressure desalination plant within the confines of a durable, mobile ISO shipping container. It’s more than a product; it’s your independent, sustainable source of high-purity freshwater, ready for rapid deployment anywhere in the world.

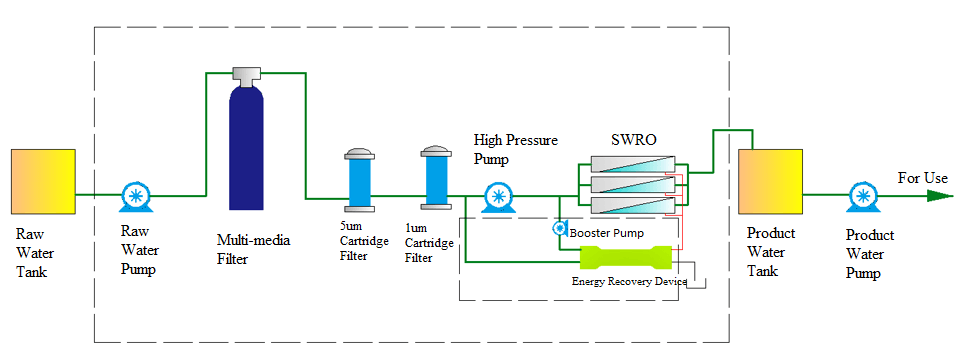

Transforming seawater—with Total Dissolved Solids (TDS) often exceeding 35,000 ppm—into pure freshwater is a marvel of engineering. Our containerized SWRO systems master this process through a multi-stage, automated sequence:

1. Intake & Pretreatment: Raw seawater is drawn in and undergoes a robust multi-stage pretreatment process (e.g., multi-media filtration, ultrafiltration) to remove suspended solids, algae, and organic matter that could foul the delicate RO membranes.

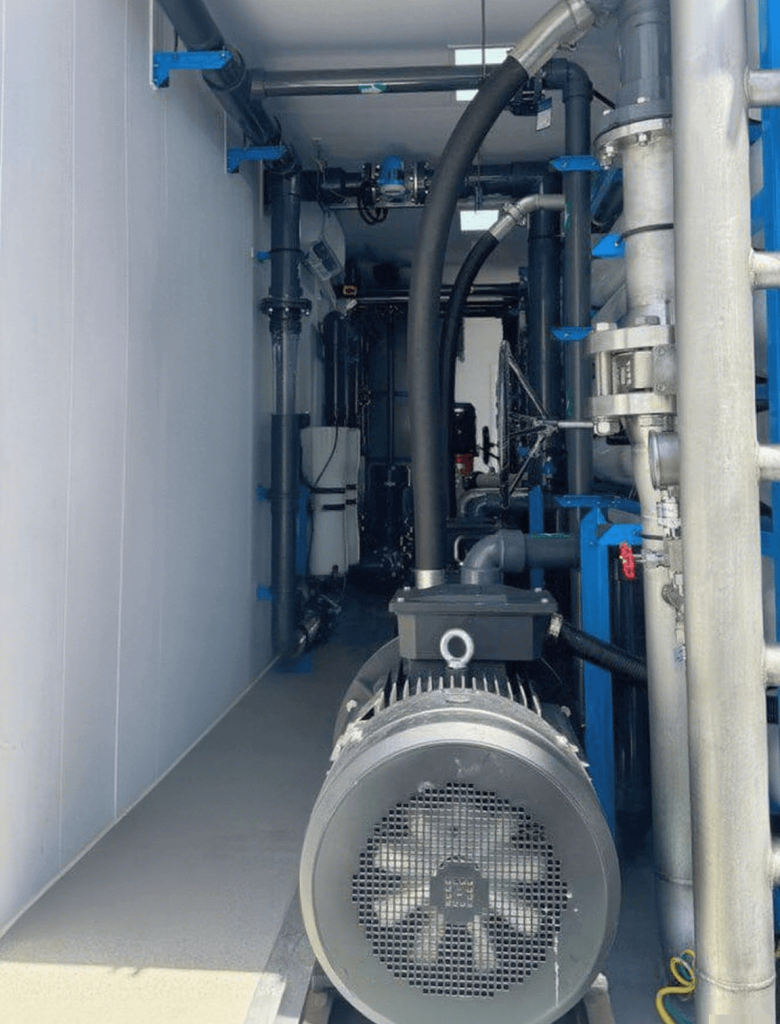

2. High-Pressure Pumping: The pre-treated seawater is pressurized to 800-1200 PSI by a high-efficiency pump, often constructed from corrosion-resistant materials like Duplex Stainless Steel to withstand the harsh saline environment. This pressure is necessary to overcome the natural osmotic pressure of seawater.
3. Reverse Osmosis Desalination: The high-pressure water is forced through specialized SWRO membranes. These semi-permeable membranes act as a molecular barrier, allowing pure water molecules to pass through while rejecting over 99% of dissolved salts, minerals, and other contaminants.
4. Energy Recovery: This is where modern SWRO becomes truly efficient. A sophisticated Energy Recovery Device (ERD) captures the immense pressure from the rejected brine stream and transfers it to the incoming feed water. This ingenious step can reduce energy consumption by up to 60%, drastically cutting operational costs.
5. Post-Treatment & Remineralization: The pure, desalinated water (permeate) is stabilized. Depending on the application, we adjust the pH and remineralize it to create palatable, healthy drinking water or water tailored for specific industrial processes.

For our customers reliability and total cost of ownership are critical. Our systems are built to deliver on both fronts.

• Uncompromising Reliability: Built with corrosion-resistant materials and premium components like Dupont SWRO membranes and Danfoss pumps, our systems are designed for longevity in harsh marine environments.
• Peak Energy Efficiency: By integrating advanced Energy Recovery Devices, we deliver one of the lowest possible energy consumption rates per cubic meter of water produced, directly benefiting your bottom line.
• Rapid Deployment & Mobility: Eliminate months of on-site construction. Our plug-and-play systems can be operational within days of arrival, perfect for fast-track projects or emergency water supply needs.
• Turnkey, Automated Operation: With integrated PLC controls, the system is designed for simple, automated operation and remote monitoring, minimizing the need for on-site specialized personnel.
• Fully Customizable: From 10m³/day for a small resort to 2,500m³/day for a municipality, we engineer each system to your specific feed water analysis and capacity requirements.

Applications: Creating Freshwater Where It’s Needed Most

Our containerized SWRO solutions provide a lifeline for a diverse range of clients, making them an ideal high-value product for distributors.

• Coastal & Island Communities: Providing a reliable municipal supply of safe drinking water.
• Resorts & Hotels: Ensuring a luxurious guest experience with high-quality water for drinking, pools, and landscaping.
• Offshore Platforms & Marine Vessels: Self-sufficient freshwater generation for crews and operations.
• Industrial Facilities: Supplying high-purity process water for coastal power plants, refineries, and manufacturing.
• Disaster Relief & Military Operations: Rapidly deployable units to provide critical drinking water in emergency situations.

Your Partner in Seawater Desalination

Choosing a desalination solution is a major decision. At Globaluf, our team of water treatment experts will work with you from initial consultation to commissioning and after-sales support.

Turn the ocean into your most reliable resource. Contact our desalination experts today to configure your Containerized SWRO system. Email us at sales@globaluf.com or explore our full range of Water Treatment Solutions.
